Luxe Gold 50/50 Double Bowl Workstation Under-Mount Apron Kitchen Sink
SKU: FP-WS-AP-DB-LG
A Luxe Gold workstation sink with 50/50 equal bowls, front and rear accessory ledges, a lowered centre divider and creased bowl floors. Available in 28″ to 34″ in 1″ increments, with 18g or 16g construction. Photos represent size groups; see the selected drawing for exact dimensions.
PRODUCT TEAR SHEET
DOWNLOADS
PRODUCT FEATURES
+ Integrated front and rear workstation ledges.
+ Lowered divider, 6 inches above the bowl floor.
+ Full-width flat apron front.
+ Creased bowl floors and rear-positioned drains.
PRODUCT SPECIFICATIONS
+ Stainless steel; 18g or 16g.
+ Under-mount apron front; 50/50 equal bowls.
+ R15 mm (0.59 in) corners; 8.5-inch depth.
+ Two rear-positioned drains; 90 mm (3.54 in) openings.
+ Luxe Gold finish.
Front and rear ledges: 1¼″ (31.75 mm) below rim; ⅜″ (9.525 mm) inward projection.
Lowered divider: 6″ (152.4 mm) above bowl floor; 2.5″ (63.5 mm) below rim.

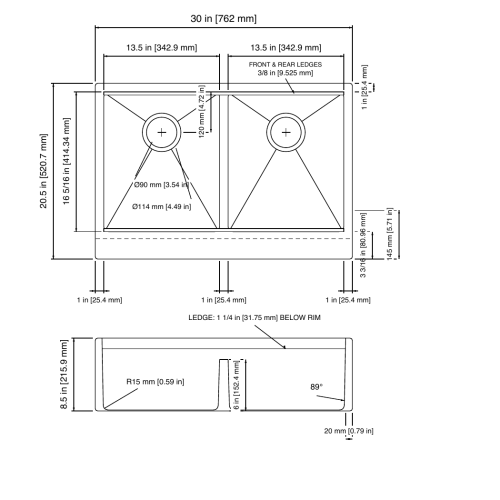

DIMENSIONS
Overall: 30″ W × 20.5″ front-to-back × 8.5″ depth (762 × 520.7 × 215.9 mm).
Each bowl: 13.5″ × 16 5/16″ (342.9 × 414.34 mm).
Side and rear rims and divider: 1″ (25.4 mm). Front apron: 3 3/16″ (80.96 mm).
Front and rear ledges: 1¼″ (31.75 mm) below rim; ⅜″ (9.525 mm) inward projection.
Lowered divider: 6″ (152.4 mm) above bowl floor; 2.5″ (63.5 mm) below rim.
CERTIFICATIONS + STANDARDS
Meets or exceeds the following standards and codes:
+ ASME A112.19.3-2022/CSAB45.4:22
+ cUPC Certified
