Price range: $899.00 through $1,149.00
Retail Reference Price:
Exclusive Project Pricing Available.
LEARN MORE

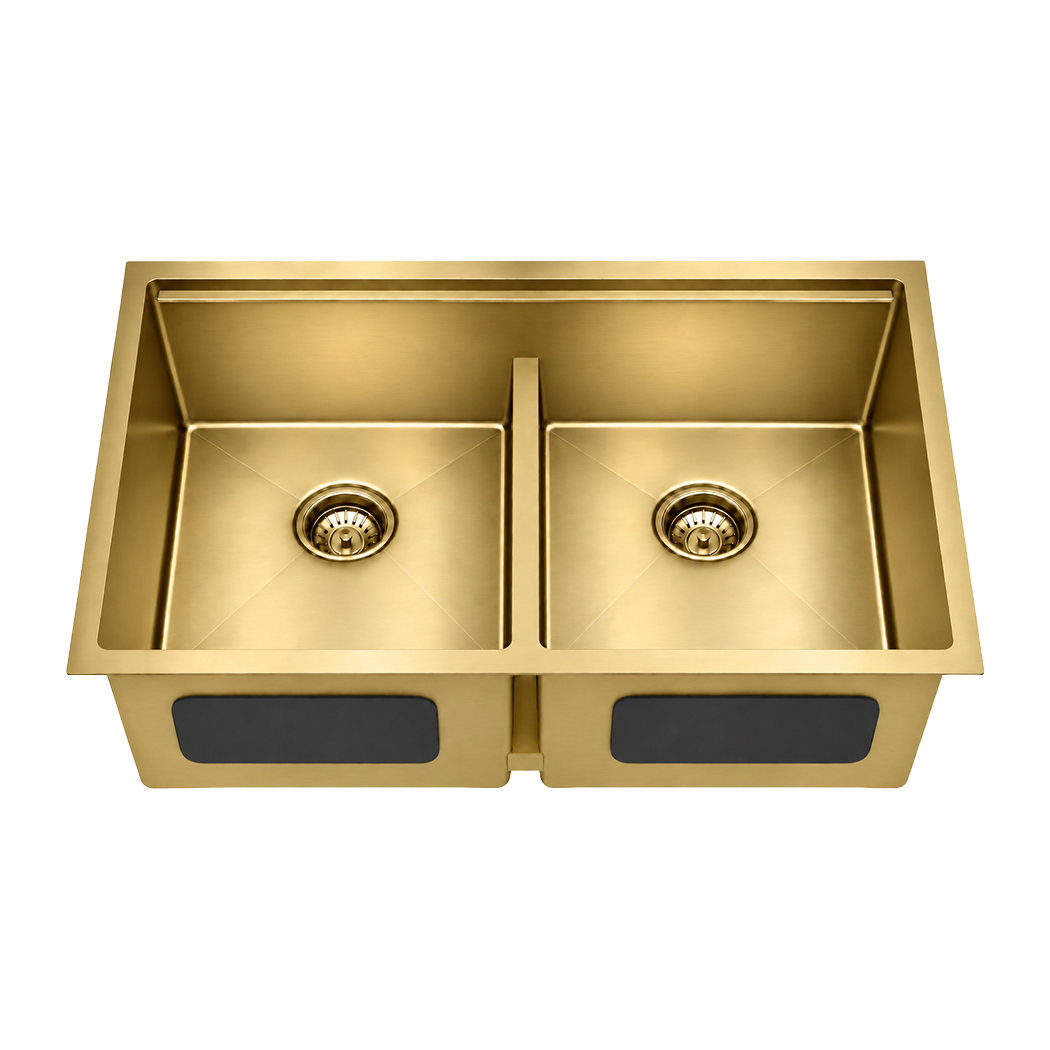

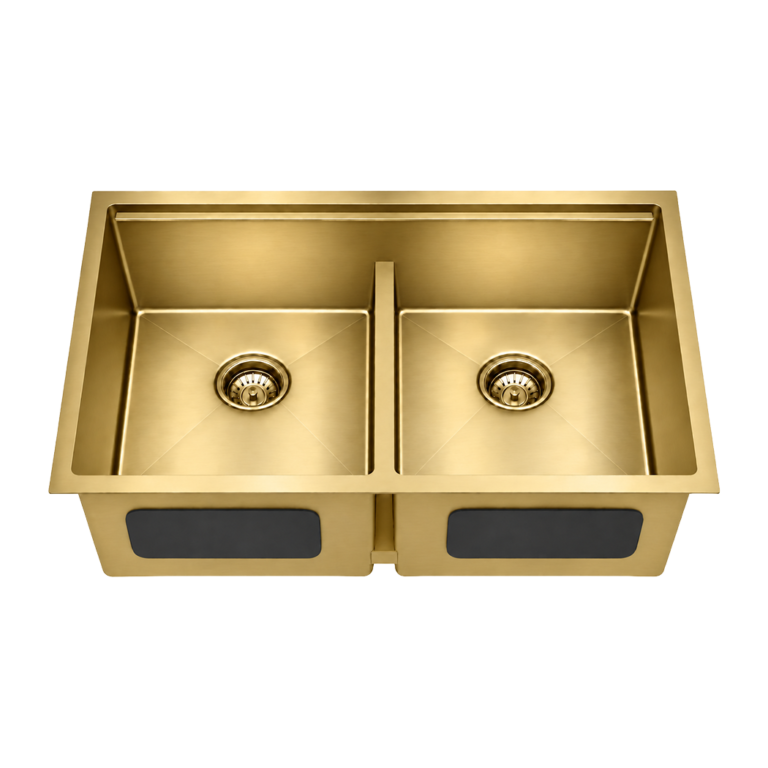

Luxe Gold 50/50 Double Bowl Workstation Under-Mount Kitchen Sink
SKU: FP-WS-DB-5050-LG
A Luxe Gold workstation sink with 50/50 equal bowls, front and rear accessory ledges, a lowered centre divider and creased bowl floors. Available in 28″ to 34″ in 1″ increments, with 18g or 16g construction. Photos represent size groups; see the selected drawing for exact dimensions.
PRODUCT TEAR SHEET
DOWNLOADS
PRODUCT FEATURES
+ Integrated front and rear workstation ledges.
+ Lowered divider, 6 inches above the bowl floor.
+ Double bowls with separate rear-positioned drains.
+ Flat under-mount rim and one-inch bowl divider.
PRODUCT SPECIFICATIONS
+ Stainless steel; 18g or 16g.
+ Under-mount; 50/50 equal bowls; R10 corners.
+ 18-inch front-to-back; 10-inch bowl depth.
+ Two rear-positioned 90 mm (3.54 in) drain openings.
+ Luxe Gold finish.
Front and rear ledges: 1¼″ (31.75 mm) below rim; ⅜″ (9.525 mm) inward projection.
Lowered divider: 6″ (152.4 mm) above bowl floor; 4″ (101.6 mm) below rim.
DIMENSIONS
Overall: 30″ W × 18″ front-to-back × 10″ depth (762 × 457.2 × 254 mm).
Left bowl: 13.5″ × 16″ (342.9 × 406.4 mm).
Right bowl: 13.5″ × 16″ (342.9 × 406.4 mm).
Side rims and bowl divider: 1″ (25.4 mm) each.
Front and rear ledges: 1¼″ (31.75 mm) below rim; ⅜″ (9.525 mm) inward projection.
Lowered divider: 6″ (152.4 mm) above bowl floor; 4″ (101.6 mm) below rim.
CERTIFICATIONS + STANDARDS
Meets or exceeds the following standards and codes:
+ ASME A112.19.3-2022/CSAB45.4:22
+ cUPC Certified
