UNIO | All-in-one Heat Pump
SKU: FP-UNIO-XX

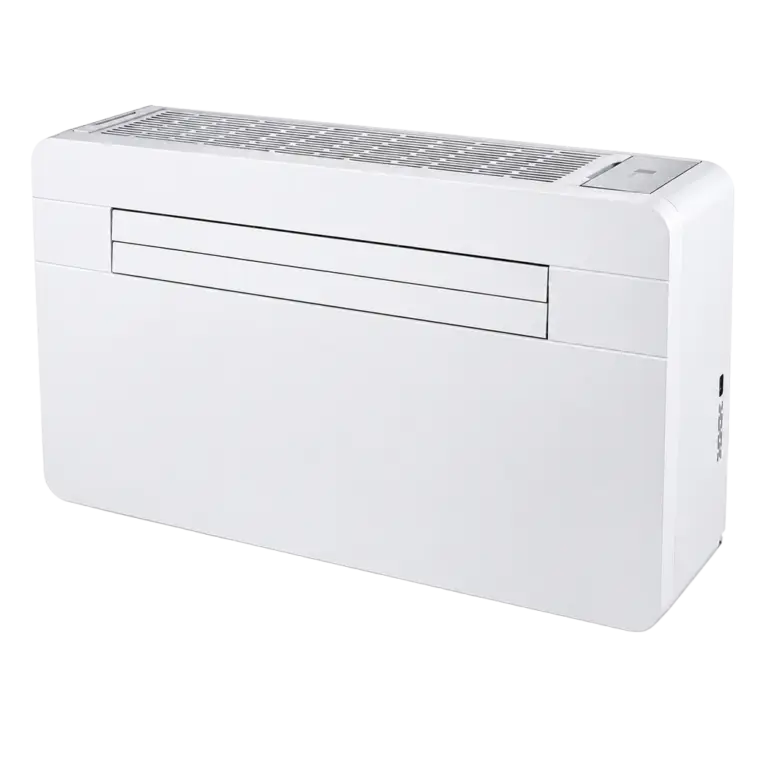

The FORM+ UNIO is a compact all-in-one inverter heat pump designed to provide efficient heating and cooling without the need for a traditional outdoor unit. Its through-wall design integrates the complete refrigeration system indoors, making it ideal for multifamily, residential and retrofit applications where exterior condensers are undesirable or impractical. DC inverter technology provides responsive comfort, while integrated Wi-Fi, multiple operating modes and optional 24V thermostat control offer flexible operation. An available Sidewall Adapter Kit provides additional installation flexibility for projects with specific exterior wall requirements.
PRODUCT TEAR SHEET
DOWNLOADS
PRODUCT FEATURES
+ All-in-one heating + cooling with no outdoor condenser
+ Energy-efficient DC inverter compressor technology
+ Integrated Wi-Fi, onboard controls + remote control
+ Heating, cooling, dehumidification + automatic operation
+ Optional external 24V wall thermostat compatibility
PRODUCT SPECIFICATIONS
+ Cooling Capacity: 6,440–12,030 BTU/h | Rated 12,030 BTU/h
+ Heating Capacity: 5,700–11,970 BTU/h | Rated 11,970 BTU/h @ 47°F
+ Efficiency: SEER2 15.57 | HSPF2 8.22
+ 208/230V | 60Hz | R32 refrigerant | 3,000W supplemental electric heat
+ Sidewall Adapter Kit available
DIMENSIONS
I: 39 3/8″ × 22 7/8″ × 8 5/8″
M: 1000 mm × 581 mm × 219 mm
CERTIFICATIONS + STANDARDS
cETLus — Intertek
Conforms to UL 60335-1, 60335-2-40
Certified to CSA C22.2 No. 60335-1, 60335-2-40
Efficiency tested by Intertek to AHRI 210/240:2023
